• Auto High-Beam Headlamps
• Electronic Pwr Asst Steer
• Forward Collision Warning
• Hill Start Assist
• Lane-Keeping System
• Post-Collision Braking
• Pre-Collision Assist W/Aeb
• Rear View Camera W/ Trailer Hitch Assist
• Selectable Drive Modes
• Side-Wind Stabilization

• Air Conditioning
• Assist Handles - A-Pillar
• Center Console
• Interior Lighting - Led
• Locking Glove Box
• Powerpoint - 12V (Front)
• Steering - Tilt/Telescopic
• Tachometer

• 3 Point Safety Belts
• Advancetrac With Rsc
• Airbags – Front, Side And Safety Canopy System
• Brakes - 4Wheel Disc W/Abs
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

Cargo Van (101A)

Load Area Protection Package

• ENGINE: 3.5L PFDI V6 FLEX-FUEL -inc: port injection (STD)
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Tow Hooks
• Power Mirror(s)
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Third Passenger Door
• Power Door Locks
• Automatic Headlights
• Automatic Highbeams
• AM/FM Stereo
• MP3 Capability
• MP3 Capability
• Steering Wheel Audio Controls
• Auxiliary Audio Input
• Bluetooth® Connection
• Vinyl Seats
• Bucket Seats
• Adjustable Steering Wheel
• WiFi Hotspot
• Keyless Entry
• Power Door Locks
• Cruise Control
• A/C
• Vinyl Seats
• Bucket Seats
• Driver Monitoring
• Brake Assist
• Front Collision Mitigation
• Power Windows
• Power Door Locks
• Immobilizer
• Traction Control
• Stability Control
• Traction Control
• Front Side Air Bag
• Lane Departure Warning
• Tire Pressure Monitor
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Front Head Air Bag
• Passenger Air Bag Sensor
• Back-Up Camera

• Brakes
• Brake ABS System (Second Line): 4-Wheel
• Brake ABS System: 4-Wheel
• Brake Type: 4-Wheel Disc
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.1
• Rear Brake Rotor Diam x Thickness (in): 12.1
• Cargo Area Dimensions
• Cargo Area Length : Floor to Seat 1 (in)
• Cargo Area Width : Beltline (in)
• Cargo Box (Area) Height (in): 72
• Cargo Box Width : Wheelhousings (in)
• Doors
• Side Door Type: Sliding
• Electrical
• Maximum Alternator Capacity (amps): 250
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Ground to Top of Load Floor (in): 28.7
• Height, Overall (in): 101.3
• Length, Overall (in): 235.5
• Overhang, Front (in): 40.3
• Wheelbase (in): 148
• Width, Max w/o mirrors (in): 81.3
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25.1
• Interior Dimensions
• Front Head Room (in): 52
• Front Hip Room (in): 60.7
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 67.9
• Passenger Capacity: 2
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 47.8
• Summary
• Body Code: V
• Body Style: Medium Roof Van

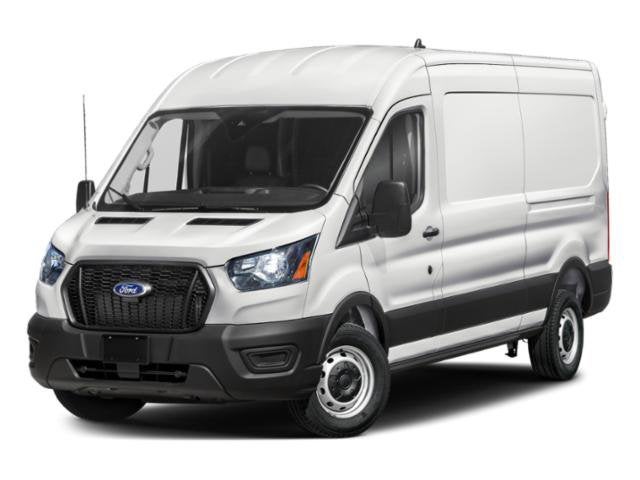

• Vehicle Name: Ford Transit Cargo Van
• Suspension
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Suspension Type - Front: Strut
• Suspension Type - Rear: Leaf
• Tires
• Front Tire Size: LT235/65SR16
• Rear Tire Size: LT235/65SR16
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Spare Tire Size: Full-Size
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Maximum Trailering Capacity (lbs): 5000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5000
• Vehicle
• Rear Door Type: Split Swing-Out
• Weight Information
• Base Curb Weight (lbs): 5235
• Curb Weight - Front (lbs): 3051
• Curb Weight - Rear (lbs): 2184
• Gross Axle Wt Rating - Front (lbs): 4130
• Gross Axle Wt Rating - Rear (lbs): 5515
• Gross Combined Wt Rating (lbs): 10800
• Gross Vehicle Weight Rating Cap (lbs): 9150
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 X 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 X 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): Full-Size
